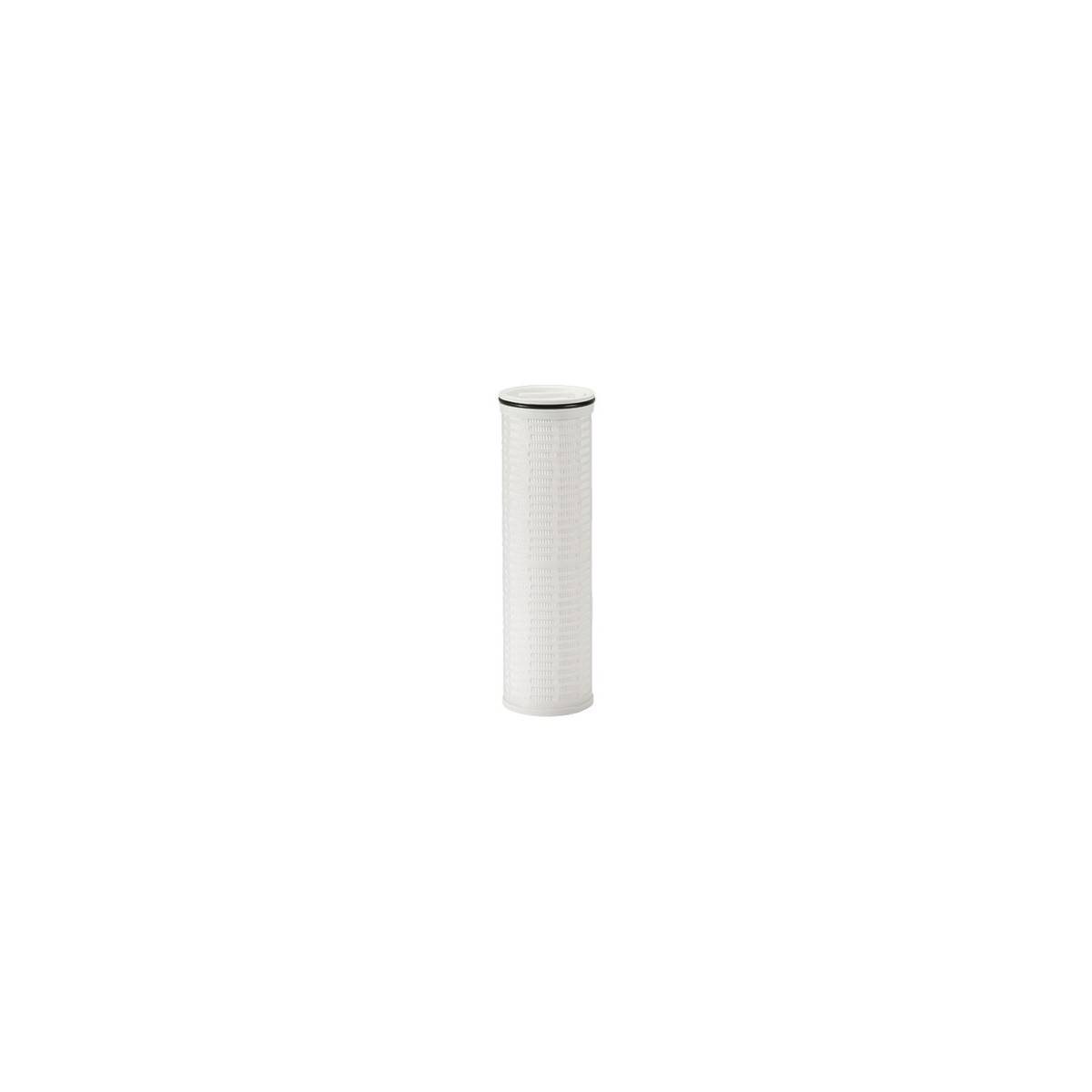

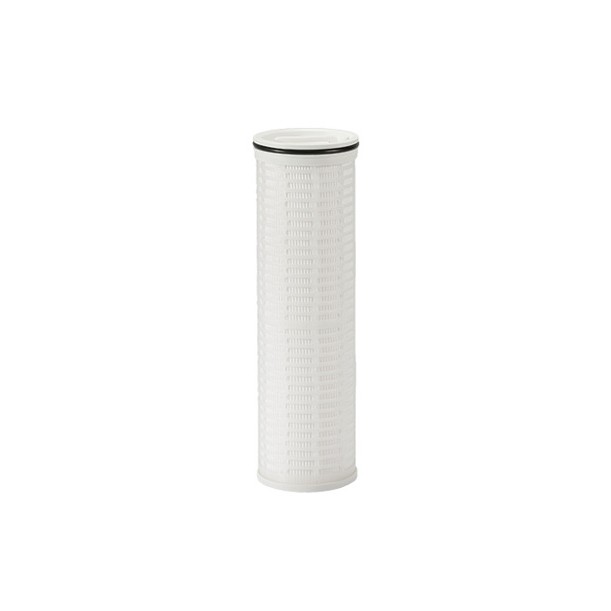

Jumbo High Flow Pleated Particle Filter Cartridge
Brand:
Product Code:
JH
The Karei JH pleated filter comprises a diverse array of depth matrix materials, ensuring absolute retention efficiencies and boasting an effective filtration area exceeding 5m² per 20 inches. Featuring a multi-graded density depth filtration mechanism and an optimized pleated configuration, it delivers high flow rates, minimal pressure drop, and exceptional dirt holding capacities.
Compliant with FDA Code of Federal Regulation Title 21 for F&B use and manufactured in Class 10K cleanroom environment.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics
- Non-woven meltblown polypropylene drainage layer protects against fiber shredding.
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Material: polypropylene, fiberglass, nylon 66, PES, PTFE
- Absolute micron rating: 0.1, 0.2, 0.3, 0.45, 0.6, 0.8, 1, 3, 5, 10, 20, 50, 70
- Length (inch): 20, 40, 60
