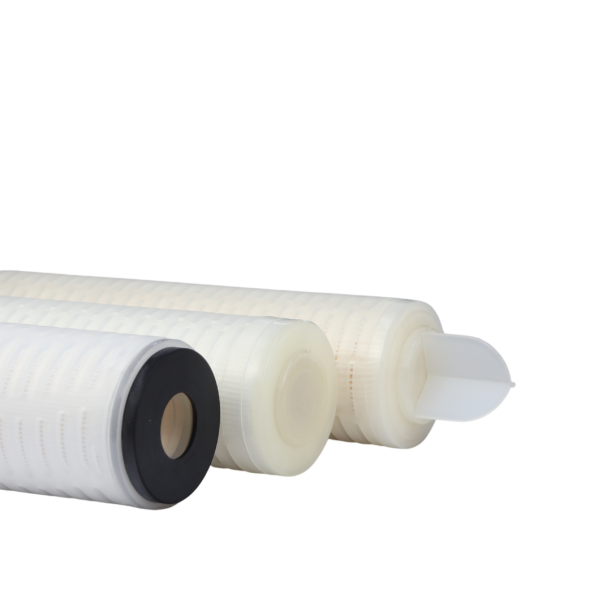

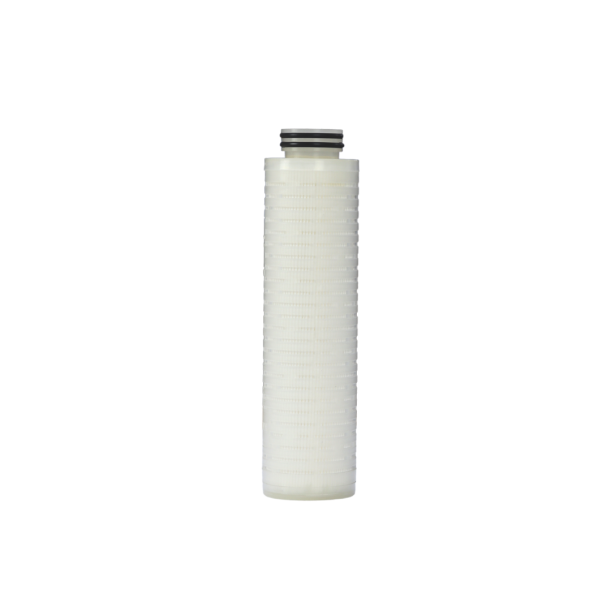

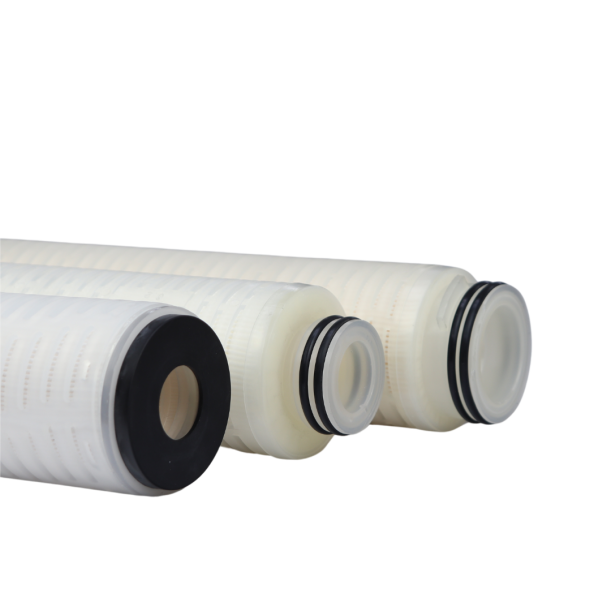

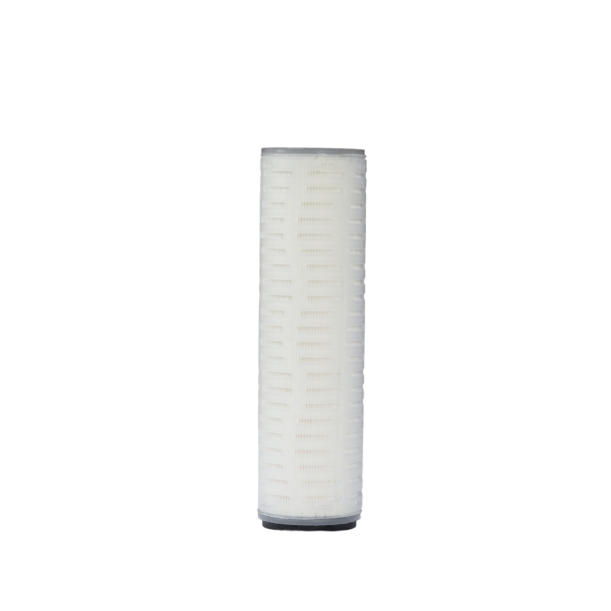

Fiberglass Pleated Particle Filter Cartridge
Brand:
Product Code:
FGP
The Karei FGP filter is engineered to efficiently remove particles while maintaining a low pressure drop and extending lifespan. Its manufacturing process adheres to strict standards, utilizing a thermal bonding technique that eliminates the need for adhesives and surfactants, thereby minimizing extractable amounts and ensuring zero contamination.
Compliant with FDA Code of Federal Regulation Title 21 for F&B use and manufactured in Class 10K cleanroom environment.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics
- Excellent chemical compatibility
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Absolute micron rating: 0.2, 0.45, 1, 3, 5, 10, 25, 50
- Length (inch): 10, 20, 30, 40
- Different end styles available: DOE, S2C, S2F, S6C, S6F
