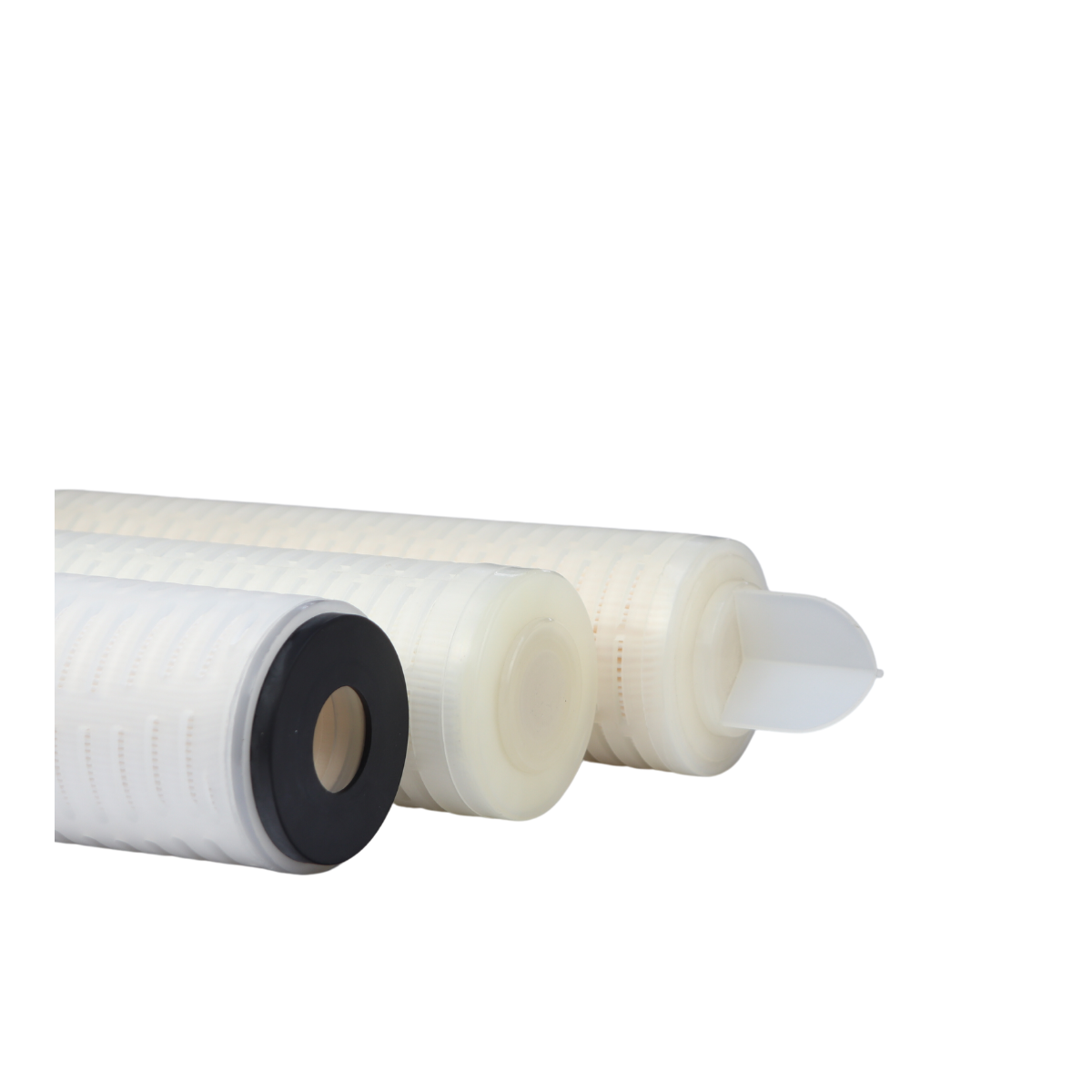

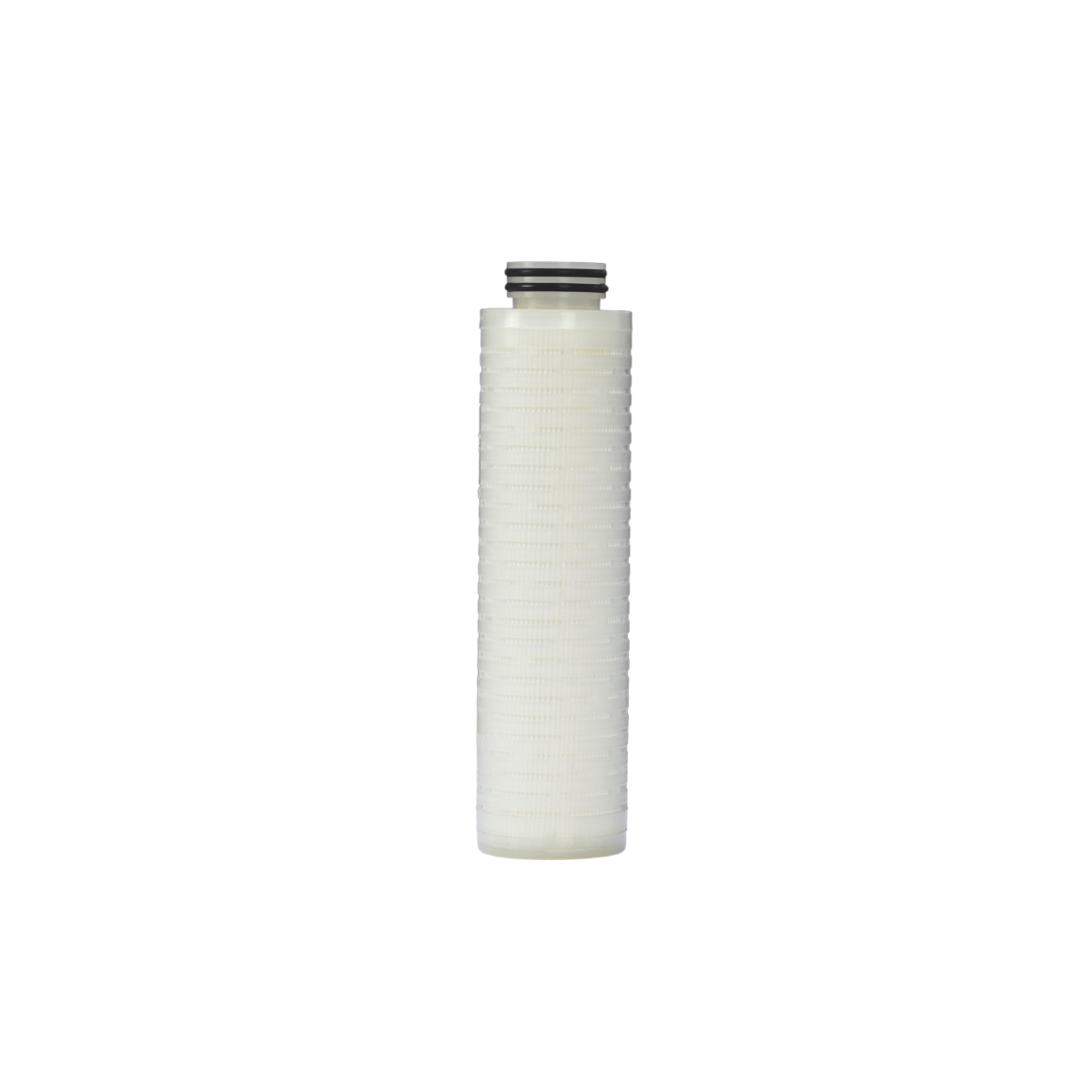

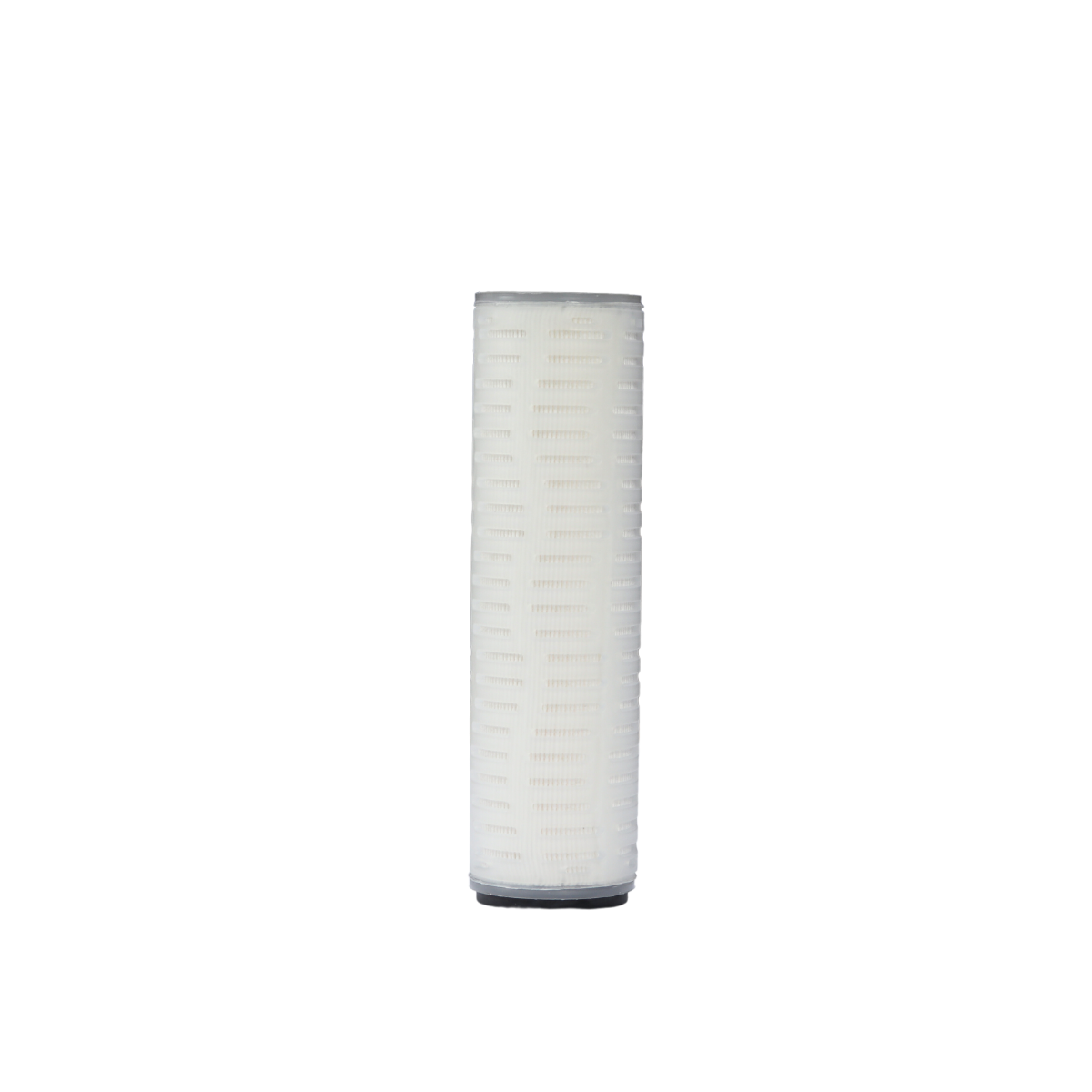

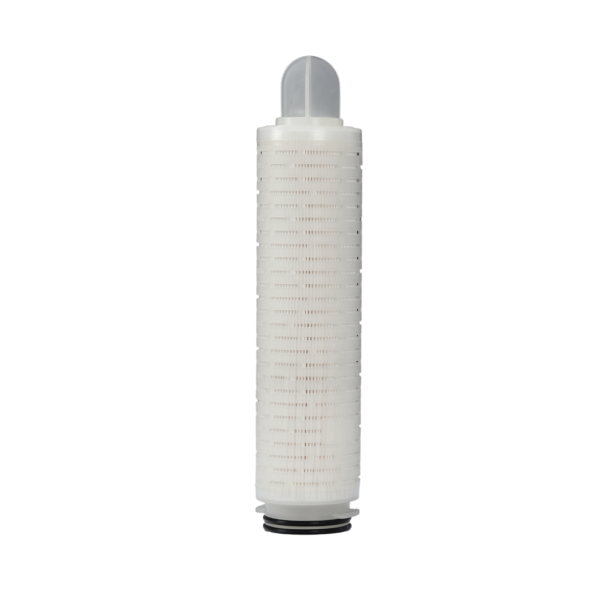

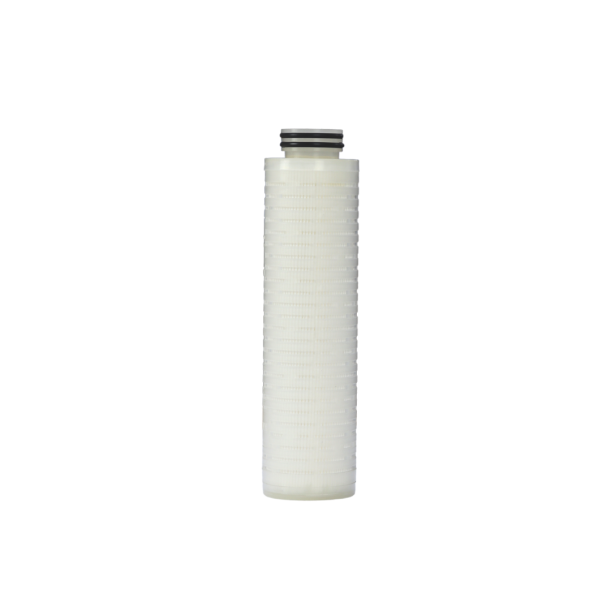

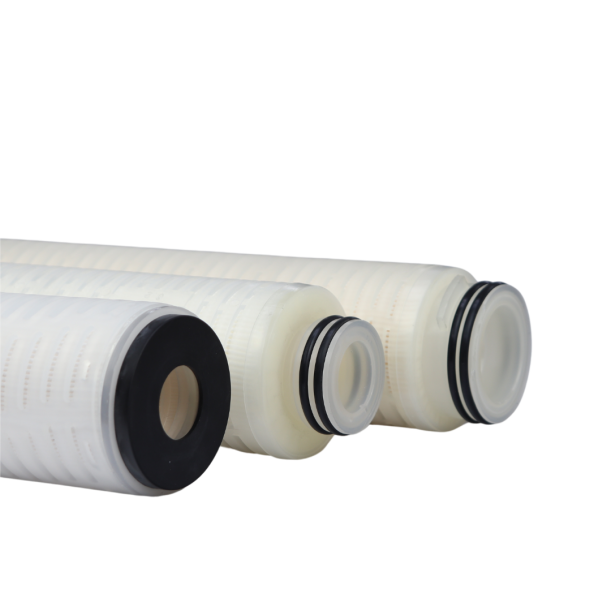

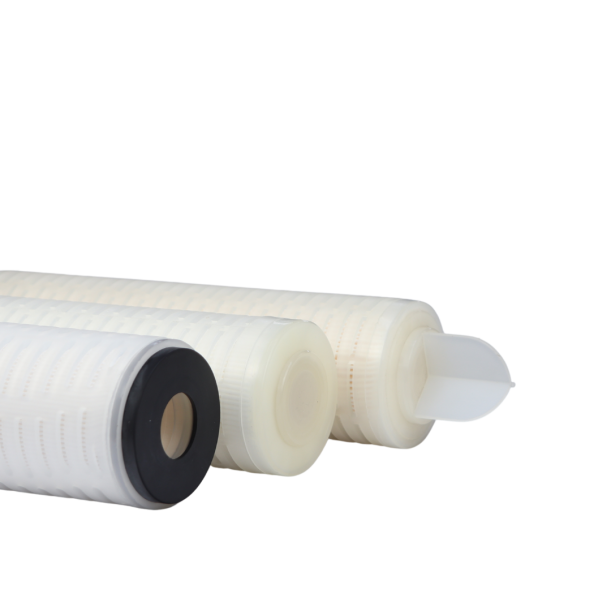

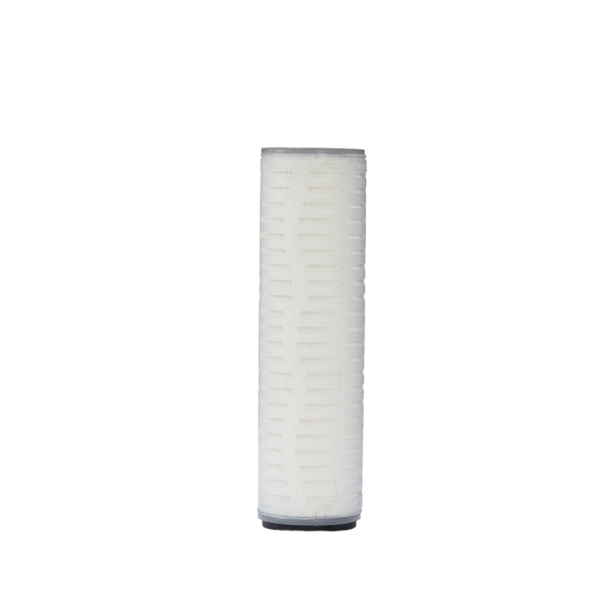

Polyvinylidine Fluoride Pleated Membrane Particle Filter Cartridge
Brand:
Product Code:
PVDF
Karei PVDF pleated filters are crafted from a high-grade polyvinylidene fluoride membrane within a Class 10K clean room environment, ensuring compliance with the strictest standards in electronics and process chemical filtration. These filters boast an absolute fixed pore rating, providing exceptional particle removal and bacteria retention capabilities, while also preventing shedding and particle unloading.
Compliant with FDA Code of Federal Regulation Title 21 for F&B use. Meet USP Class Vl- 121°C plastic reactivity test for biosafety.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics
- Available in natural hydrophobic or modified hydrophobic forms.
- Excellent chemical compatibility.
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Absolute micron rating: 0.1, 0.2, 0.45, 0.6, 0.8
- Length (inch): 10, 20, 30, 40
- Different end styles available: DOE, S2C, S2F, S6C, S6F
