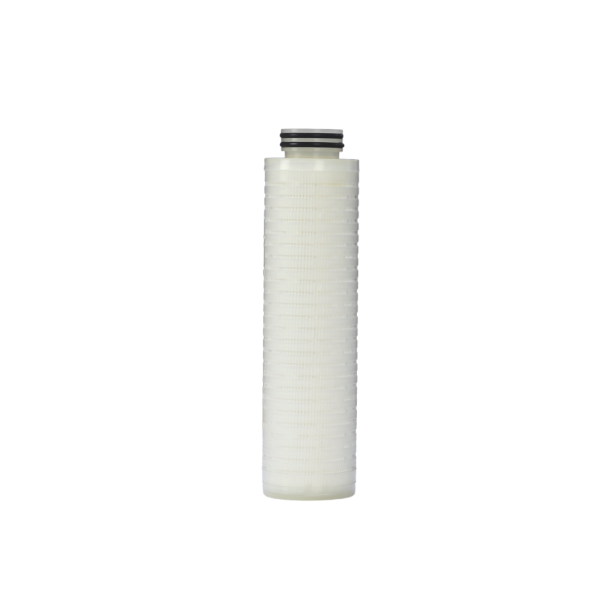

Absolute Pleated Particle Filter Cartridge
Brand:
Product Code:
AP
Karei AP series pleated filters are made of 100% pure polypropylene depth matrix that offers absolute retention efficiencies from 0.1 to 20 micron with effective filtration area of more than 0.64m2. It is manufactured in Class 10K cleanroom environment and ISO-9001 certified.
FDA Code of Federal Regulation Title 21 listed pure polypropylene material ensures wide range of chemical compatibility.
Suitable for wide range of process fluid applications including pharmaceutical, micro-electronics, F&B, biological, cosmetics and various types of application.
- Multi graded fiber that yields progressive finer particles retention though the depth and life of media.
- Multi graded density depth filtration mechanism combined with optimized pleated configuration and high effective surface area provides superior flow rates, lower pressure drop and high dirt holding capacity as compared to conventional filters.
- All components, parts and supporting layers are thermally welded without any surfactants, binder or adhesive.
- Absolute micron rating: 0.1, 0.2, 0.3, 0.45, 0.8, 1, 3, 5, 10, 20
- Length (inch): 10, 20, 30, 40
- Different end styles available: DOE, S2C, S2F, S6C, S6F
